End Mills

ASPX_SHELL_INCH
（CUTTING FOR TITANIUM ALLOY）

ASPX4UR3.0005DA29A35 EDP:10616987

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
ASPX Square (With Center Hole Long Cut Length)
  • HSK
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable
ASPX_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable

Product Information

  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

The actual product may differ from the displayed image.

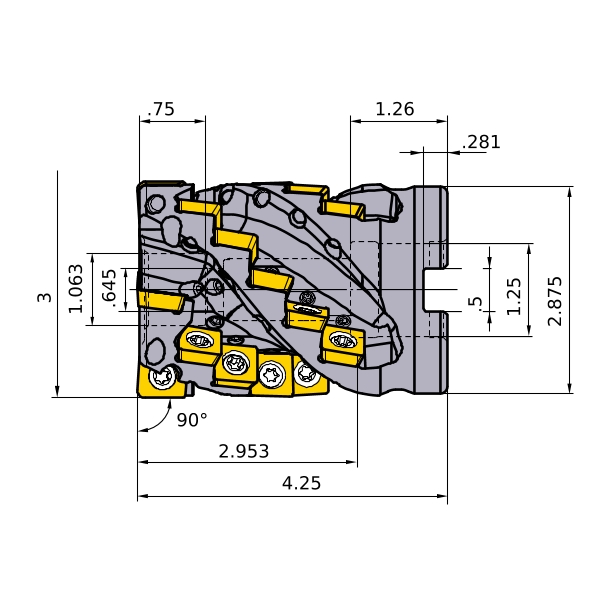

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1.25
DCSFMS 2.875
DAH .645
DCCB 1.063
KAPR 90°
L8 .281
LF 4.25
CBDP 1.26
LCCB .75
KWW .5
APMX 2.953
WT 4.431
Cutting item count: CICT 35
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
