WWX200_INCH
（Double sided Insert Type Shoulder Mill）

WWX200UR2003SA20L EDP:22863607

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
  • The set bolt is built in.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

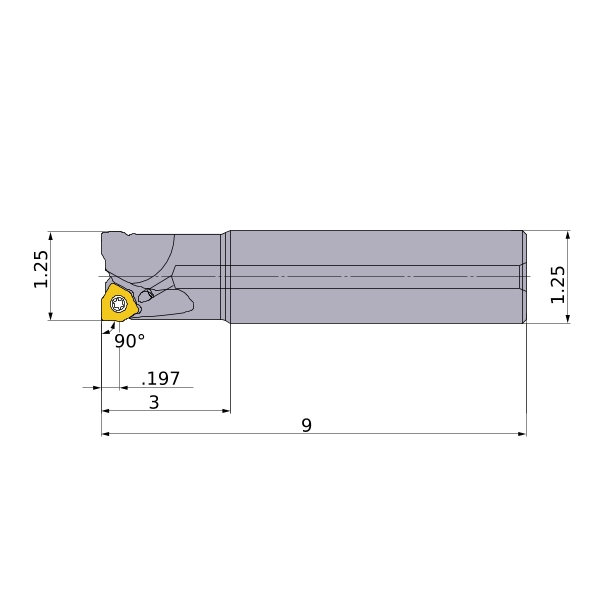

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.25
DCON 1.25
KAPR 90°
LF 9
LH 3
APMX .197
GAMP -6°
GAMF -15°
WT 2.8
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 25100
