External Cutting

MSKN_INCH


MSKNL-164D EDP:103167

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.

The actual product may differ from the displayed image.

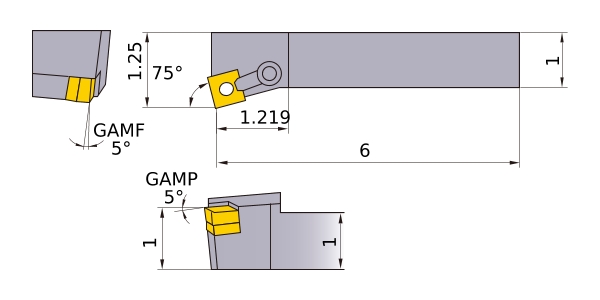

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI MSKNL164D
Sales unit 1
Hand L
Stock
Unit of Length I
B 1
KAPR 75°
LF 6
LH 1.219
WF 1.25
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
