External Cutting

SCLC-SM_INCH


SCLCL-062SM EDP:337181

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI SCLCL062C-SM
Sales unit 1
Hand L
Stock

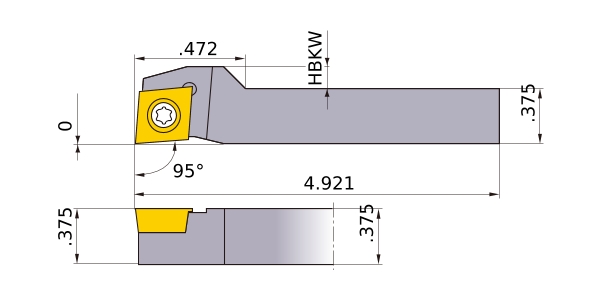

Unit of Length I
B .375
KAPR 95°
LF 4.921
LH .472
H .375
HF .375
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__21.5
2D Model (DXF)
CAD data name Download
SCLCL-062SM
CAD

3D Detail Model (STP,STL)
CAD data name Download
SCLCL-062SM
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SCLCR-103SM_MR0_2
0.2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
