External Cutting

SCLC_INCH


SCLCR-062 EDP:104523

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

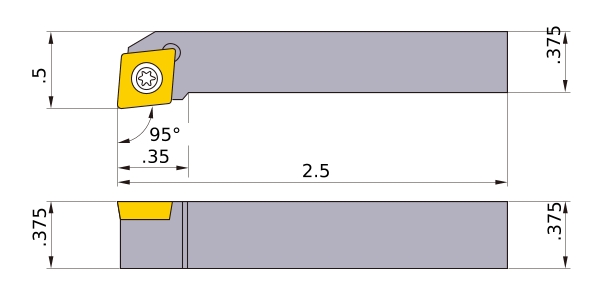

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
B .375
KAPR 95°
LF 2.5
LH .35
WF .5
H .375
HF .375
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__21.5
2D Model (DXF)
CAD data name Download
SCLCR-062
CAD

3D Detail Model (STP,STL)
CAD data name Download
SCLCR-062
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SCLCR-062_MR0_4
0.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
