External Cutting

STGE_INCH


STGER-163 EDP:106503

Product Information

  • Shank size .625 square thru 1.000 square with screw-on method.
  • Suitable for finishing aluminum or non-ferrous metals and for chatter control on small diameters.

The actual product may differ from the displayed image.

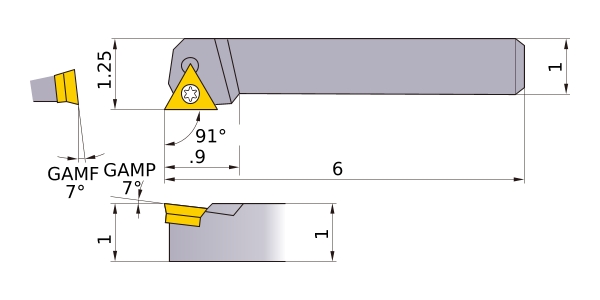

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI STGER163D
Sales unit 1
Hand R
Stock
Unit of Length I
B 1
KAPR 91°
LF 6
LH .9
WF 1.25
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE__32
2D Model (DXF)
CAD data name Download
STGER-163
CAD

3D Detail Model (STP,STL)
CAD data name Download
STGER-163
CAD

3D Light Model (STP,STL)
CAD data name RE Download
STGER-163_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
