External Cutting


DCLNL-123 EDP:371021

Product Information

  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • New double clamp type.
  • Recommended with CBN grade insert.

The actual product may differ from the displayed image.

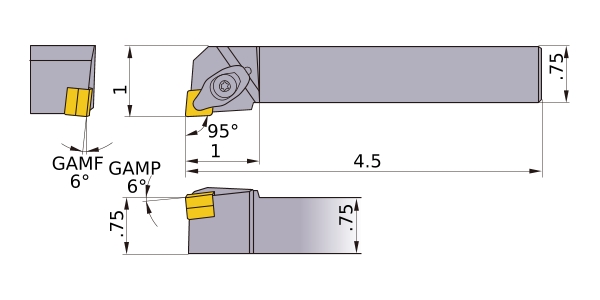

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Unit of Length I
B .75
KAPR 95°
LF 4.5
LH 1
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__32
2D Model (DXF)
CAD data name Download

3D Detail Model (STP,STL)
CAD data name Download

3D Light Model (STP,STL)
CAD data name RE Download
.031 CAD


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
