External Cutting

DCRN_INCH


DCRNR-164 EDP:371400

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.

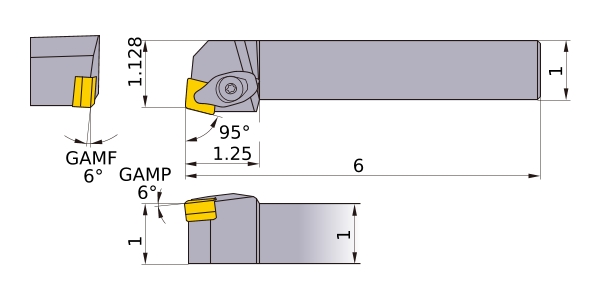

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
B 1
KAPR 95°
LF 6
LH 1.25
WF 1.128
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43
2D Model (DXF)
CAD data name Download
DCRNR-164
CAD

3D Detail Model (STP,STL)
CAD data name Download
DCRNR-164
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DCRNR-164_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
