Face Cutter

ASX400_INCH
(GENERAL CUTTING)

ASX400R0308C EDP:198774

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

The actual product may differ from the displayed image.

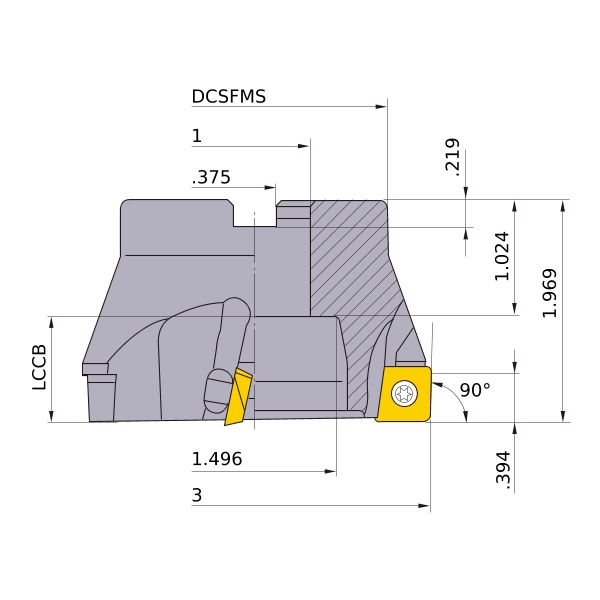

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1
DCCB 1.496
KAPR 90°
L8 .219
LF 1.969
CBDP 1.024
KWW .375
APMX .394
GAMP +11°
GAMF -10°
WT 2.2
Peripheral effective cutting edge count: ZEFP 8
RPMX 14000
2D Model (DXF)
CAD data name Download
ASX400R0308C
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R0308C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R0308C_IR0_031
.031 CAD CAD
ASX400R0308C_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
