Mitsubishi Materials Web Catalog | Products Information | Face Cutter | BXD4000_INCH

Low resistance insert and high rigidity body.
The Anti Fly Insert mechanism guarantees secure high-revolution milling.
Air coolant through.

The actual product may differ from the displayed image.

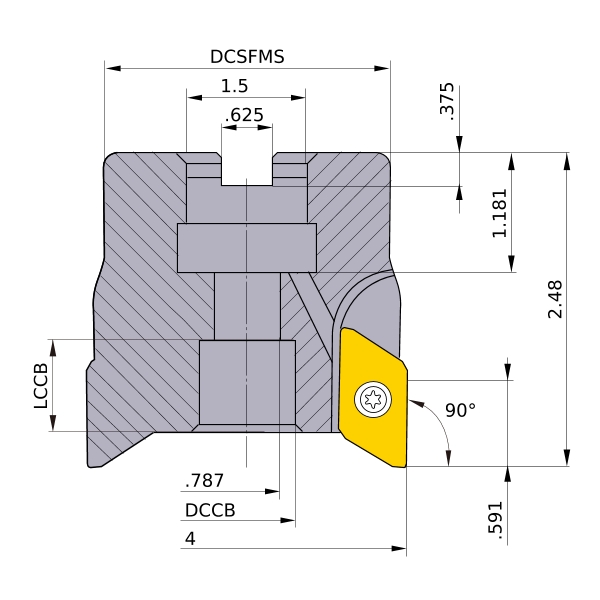

For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Hand

R

Stock

Unit of Length

I

DC

4

DCON

1.5

DAH

.787

KAPR

90°

RMPX

3

L8

.375

LF

2.48

CBDP

1.181

KWW

.625

APMX

.591

GAMP

+15°

GAMF

+16°

Peripheral effective cutting edge count: ZEFP

6

RPMX

16000

2D Model (DXF)
CAD data name	Download
