Face Cutter

APX3000-A_INCH


APX3000R1506A EDP:10527665

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

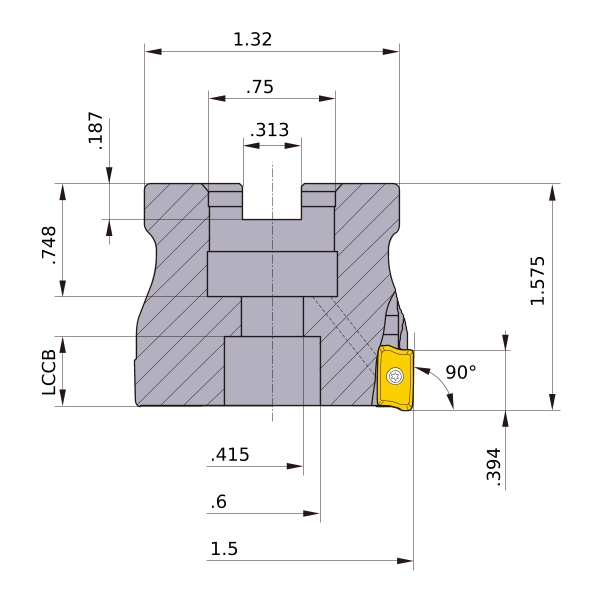

Unit of Length I
DC 1.5
DCON .75
DCSFMS 1.32
DAH .415
DCCB .6
KAPR 90°
RMPX 2.4
L8 .187
LF 1.575
CBDP .748
KWW .313
APMX .394
GAMP +22°
GAMF +26°
Peripheral effective cutting edge count: ZEFP 6
