Face Cutter >APX4000_INCH >APX4000UR0307DA

Face Cutter

APX4000_INCH


APX4000UR0307DA EDP:373173

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

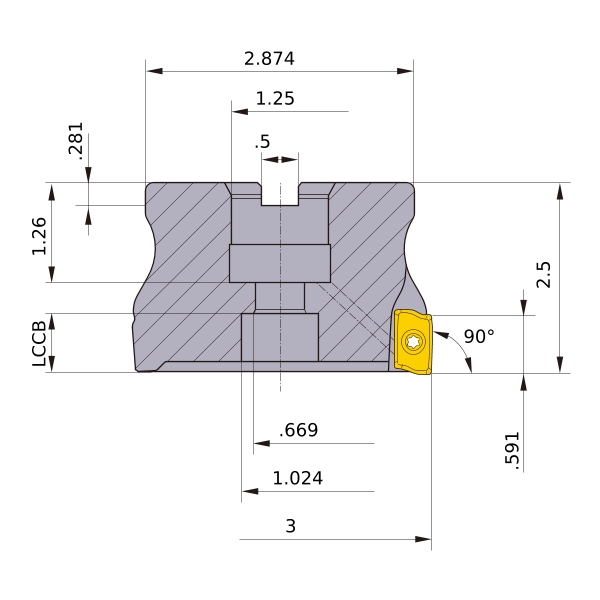

DC 3
DCON 1.25
DCSFMS 2.874
DAH .669
DCCB 1.024
KAPR 90°
RMPX 2
L8 .281
LF 2.5
CBDP 1.26
KWW .5
APMX .591
GAMP +22°
GAMF +26°
Peripheral effective cutting edge count: ZEFP 7
2D Model (DXF)
CAD data name Download
APX4000UR0307DA
CAD

3D Detail Model (STP,STL)
CAD data name Download
APX4000UR0307DA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
APX4000UR0307DA_IR0_016
.016 CAD CAD
APX4000UR0307DA_IR0_031
.031 CAD CAD
APX4000UR0307DA_IR0_039
.039 CAD CAD
APX4000UR0307DA_IR0_047
.047 CAD CAD
APX4000UR0307DA_IR0_063
.063 CAD CAD
APX4000UR0307DA_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
