Face Cutter >AXD7000_INCH >AXD7000UR0303DB

Face Cutter

AXD7000_INCH
(For Aluminum Alloy)

AXD7000UR0303DB EDP:503185

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD7000
  • Low resistance inserts.
  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
AXD7000_MM
  • Multi functional milling.
  • High spindle speeds possible.
  • Low resistance inserts.
  • Excellent wall accuracy.

Product Information

  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.
  • High spindle speeds possible.

The actual product may differ from the displayed image.

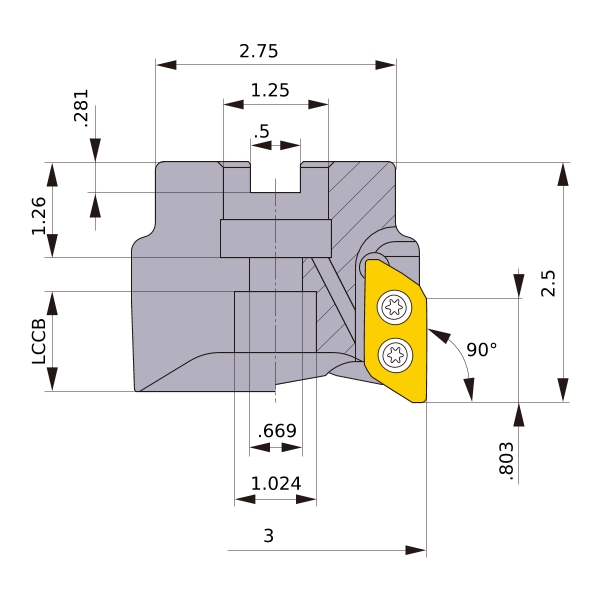

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1.25
DCSFMS 2.75
DAH .669
DCCB 1.024
KAPR 90°
RMPX 4
L8 .281
LF 2.5
CBDP 1.26
KWW .5
APMX .803
GAMP +11°
GAMF +28°
WT 2.6
Peripheral effective cutting edge count: ZEFP 3
RPMX 23000
2D Model (DXF)
CAD data name Download
AXD7000UR0303DB
CAD

3D Detail Model (STP,STL)
CAD data name Download
AXD7000UR0303DB
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AXD7000UR0303DB_IR0_157
.157 CAD CAD
AXD7000UR0303DB_IR0_197
.197 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
