Face Cutter

AHX640W_INCH
（HIGH FEED CUTTING FOR CAST IRON）

AHX640WL0512E EDP:505076

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX640W
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX640W_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
  • Heptagonal double-sided insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

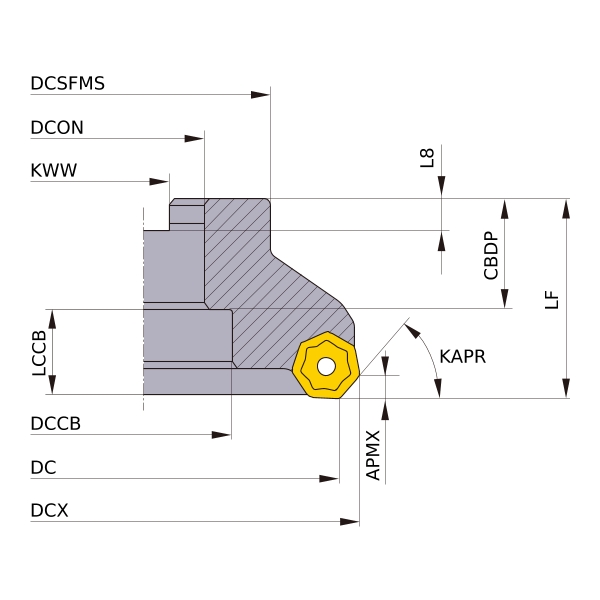

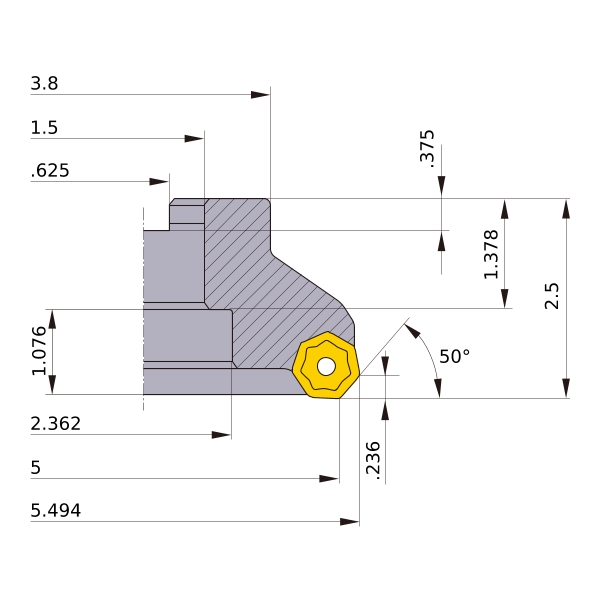

DC 5
DCX 5.494
DCON 1.5
DCSFMS 3.8
DCCB 2.362
KAPR 50°
L8 .375
LF 2.5
CBDP 1.378
LCCB 1.076
KWW .625
APMX .236
GAMP -6°
GAMF -4°
WT 8.8
Peripheral effective cutting edge count: ZEFP 12
2D Model (DXF)
CAD data name Download
AHX640WL0512E
CAD
