Face Cutter >WSX445_INCH >WSX445UR1504SA

Face Cutter

WSX445_INCH
（GENERAL CUTTING）

WSX445UR1504SA EDP:828351

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

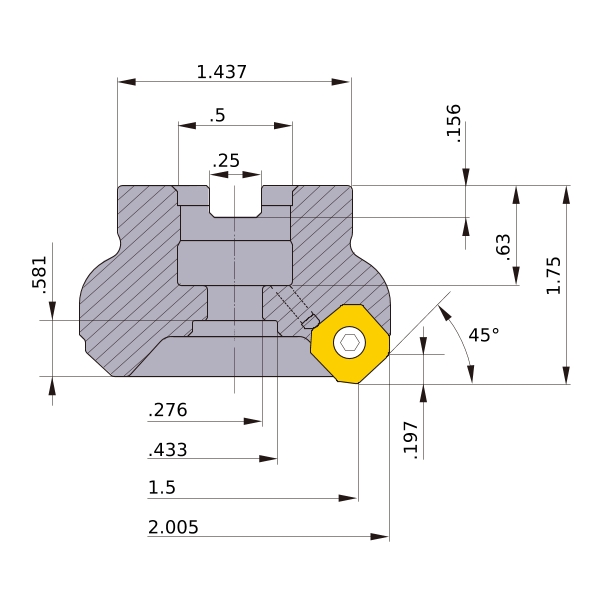

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCX 2.005
DCON .5
DCSFMS 1.437
DAH .276
DCCB .433
KAPR 45°
L8 .156
LF 1.75
CBDP .63
LCCB .581
KWW .25
APMX .197
GAMP -6°
GAMF -12°
WT 0.7
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
WSX445UR1504SA
