Face Cutter >ARP_INCH >ARP6UPR0409EA

Face Cutter

ARP_INCH
(Round insert cutter for difficult-to-cut materials)

ARP6UPR0409EA EDP:10527382

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ARP
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

ARP_MM
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.


Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.

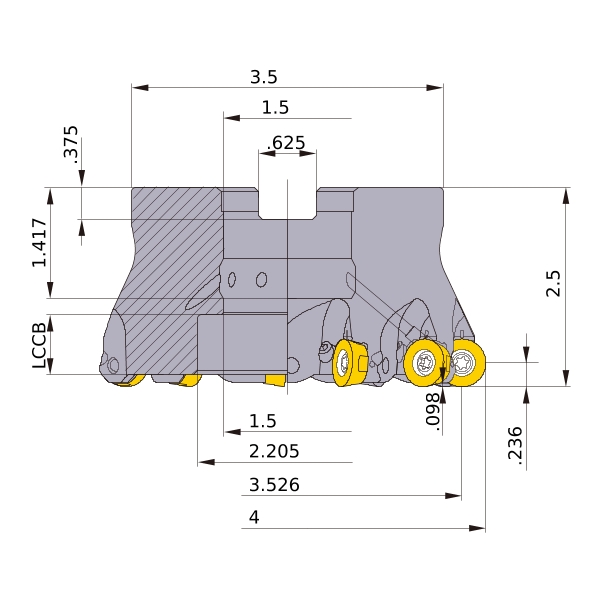

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
A1 .098
AZ .098
DC 3.526
DCX 4
DCON 1.5
DCSFMS 3.5
DAH 1.5
DCCB 2.205
RMPX 1.7°
L8 .375
LF 2.5
CBDP 1.417
KWW .625
APMX .236
GAMP +4°
GAMF -6°
WT 4.475
R 6
Peripheral effective cutting edge count: ZEFP 9
2D Model (DXF)
CAD data name Download
ARP6UPR0409EA
CAD

3D Detail Model (STP,STL)
CAD data name Download
ARP6UPR0409EA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ARP6UPR0409EA_IR0_236
.236 CAD CAD
