Face Cutter >AHX475S_INCH >AHX475SUR0205AA

Face Cutter

AHX475S_INCH
（GENERAL CUTTING）

AHX475SUR0205AA EDP:10567562

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX475S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX475S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2

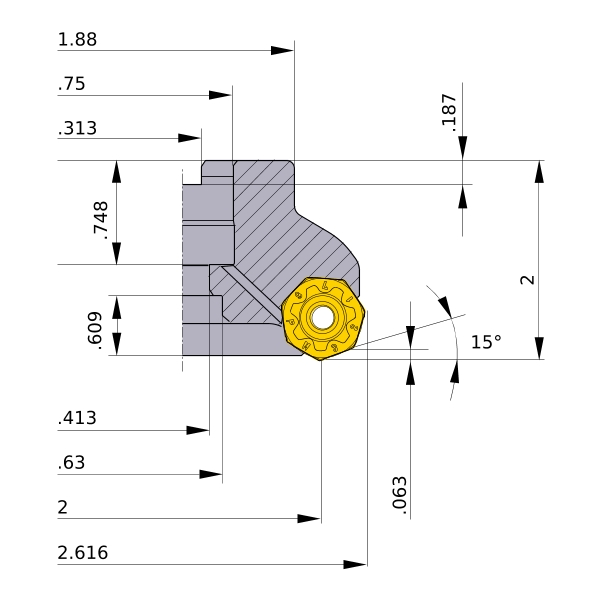

DCX 2.616
DCON .75
DCSFMS 1.88
DAH .413
DCCB .63
KAPR 15°
L8 .187
LF 2
CBDP .748
LCCB .609
KWW .313
APMX .063
GAMP -6°
GAMF -10°
WT 1.4
Peripheral effective cutting edge count: ZEFP 5
2D Model (DXF)
CAD data name Download
AHX475SUR0205AA
