Face Cutter >AHX475S_INCH >AHX475SUR0612FA

Face Cutter

AHX475S_INCH
（GENERAL CUTTING）

AHX475SUR0612FA EDP:10567739

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX475S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX475S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 6
DCX 6.616
DCON 2
DCSFMS 4.88
DCCB 3.228

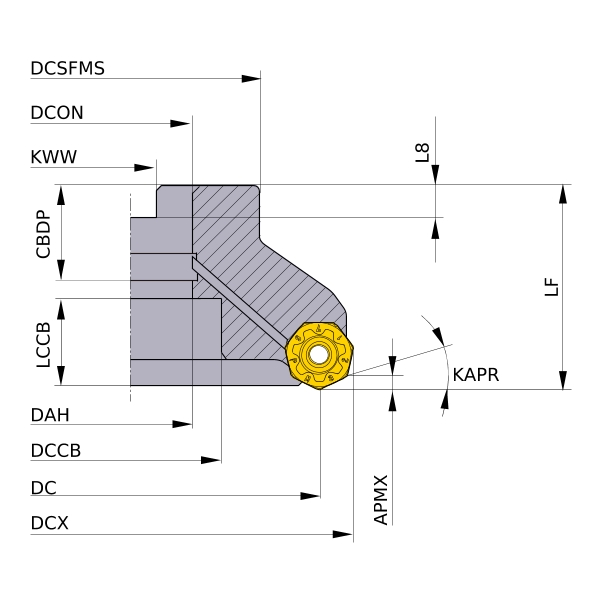

KAPR 15°
L8 .437
LF 2.5
CBDP 1.417
LCCB .755
KWW .75
APMX .063
GAMP -6°
GAMF -10°
WT 12.5
Peripheral effective cutting edge count: ZEFP 12
