Face Cutter >VAS400_HALF_INCH >VAS400UA082020L0.75F
VAS400_HALF_INCH
(Side Cutter)
The actual product may differ from the displayed image.

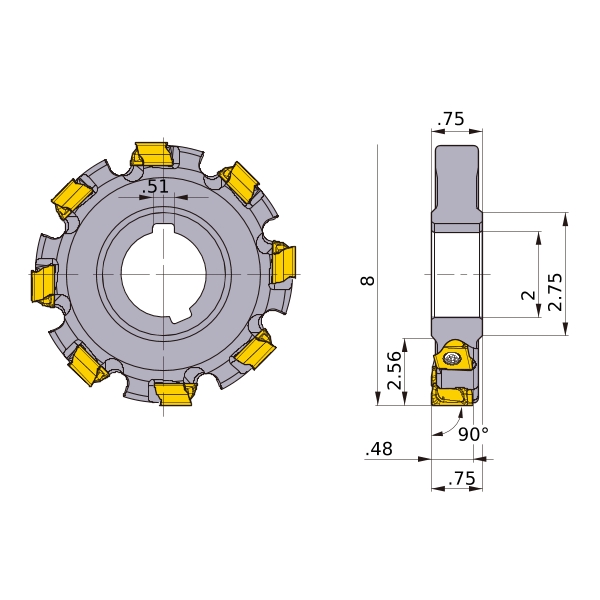

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | L |
Stock | |
Unit of Length | I |
DC | 8 |
DCON | 2 |
DCSFMS | 2.75 |
KAPR | 90° |
LF | .75 |
OAL | .75 |
CDX | 2.56 |
KWW | .51 |
APMX | .48 |
GAMP | +3° |
GAMF | +8° |
Peripheral effective cutting edge count: ZEFP | 20 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Insert for Rotating Tools
