Face Cutter >WJX_INCH >WJX14UR3.0006CA

Face Cutter

WJX_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14UR3.0006CA EDP:10597972

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WJX09
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX09_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.


Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

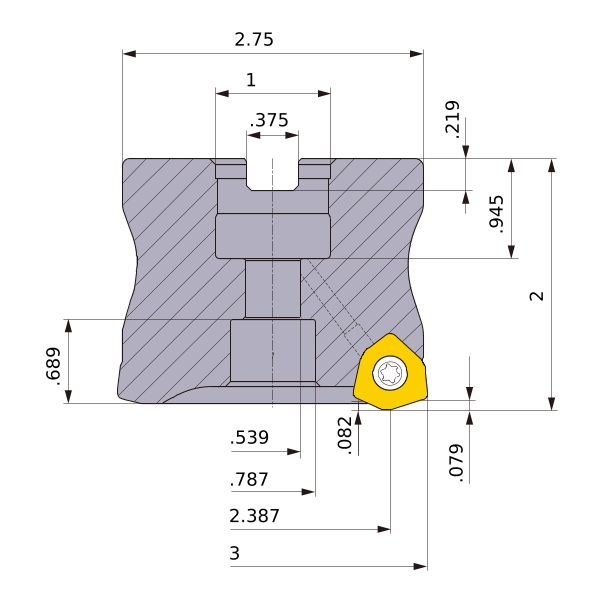

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .082
DC 2.387
DCX 3
DCON 1
DCSFMS 2.75
DAH .539
DCCB .787
RMPX 2.2°
L8 .219
LF 2
CBDP .945
LCCB .689
KWW .375
APMX .079
GAMP -6°
GAMF -10°
WT 2.3
Peripheral effective cutting edge count: ZEFP 6
RPMX 16100
3D Detail Model (STP,STL)
CAD data name Download
WJX14UR3_0006CA
