Face Cutter >VPX200_INCH >VPX200UR1.2505SA

Face Cutter

VPX200_INCH
(Multi-functional Cutter for High Efficiency Machining)

VPX200UR1.2505SA EDP:10597132

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

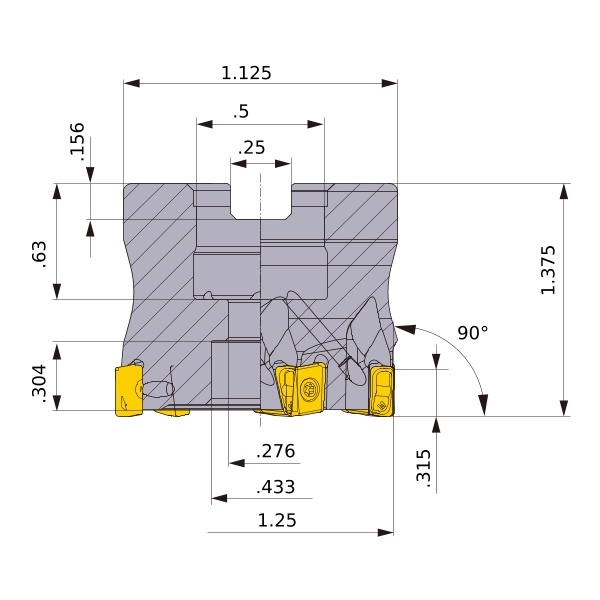

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.25
DCON .5
DCSFMS 1.125
DAH .276
DCCB .433
KAPR 90°
RMPX 0.72°
L8 .156
LF 1.375
CBDP .63
LCCB .304
KWW .25
APMX .315
WT 0.12
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
Effective Cutting Edge 5
RPMX 25200
2D Model (DXF)
CAD data name Download
VPX200UR1_2505SA
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX200UR1_2505SA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX200UR1_2505SA_IR0_008
.008 CAD
VPX200UR1_2505SA_IR0_016
.016 CAD
VPX200UR1_2505SA_IR0_031
.031 CAD
VPX200UR1_2505SA_IR0_039
.039 CAD
VPX200UR1_2505SA_IR0_047
.047 CAD
VPX200UR1_2505SA_IR0_063
.063 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
