Grooving Others

GTBH_INCH


GTBHL-103 EDP:506511

Product Information

  • For gang type tool posts.
  • High rigidity due to desigh of vertical insert.

The actual product may differ from the displayed image.

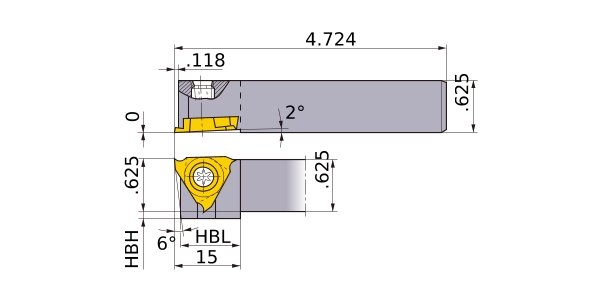

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI GTBHL103BX
Sales unit 1
Hand L
Stock
Unit of Length I
B .625
LF 4.724
LH 15
CDX .118
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1
