Insert for Rotating Tools

APMT1604PDER-M2 EDP:152872

Product Information

The actual product may differ from the displayed image.

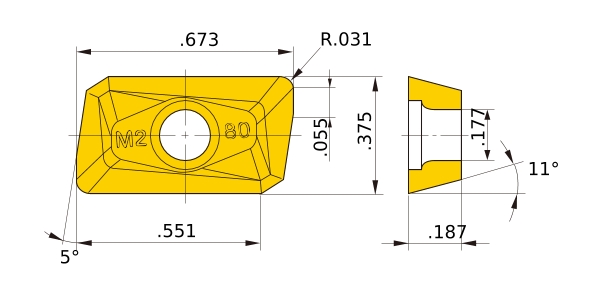

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade F7030
Order Number APMT1604PDER-M2
Sales unit 10
Unit of Length I
D1 .177
AN 11°
LE .551
L .673
W1 .375
BS .055
S .187
RE .031
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX4545
3D Detail Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
