Insert for Rotating Tools

SPMN422 EDP:399357

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade F7030
Order Number SPMN120308
Sales unit 10
Stock

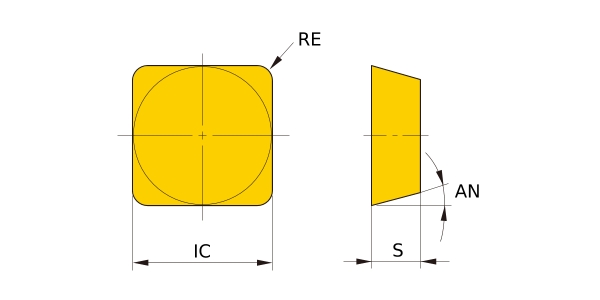

Unit of Length I

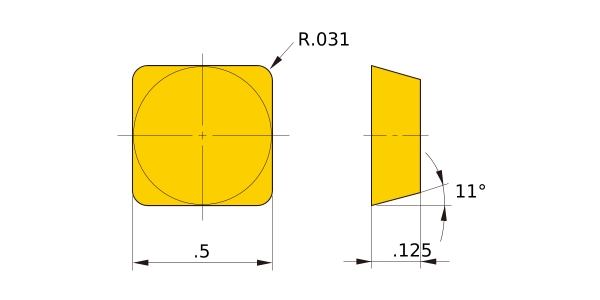

IC .5
EPSR 90°
AN 11°
S .125
RE .031
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide VP15TF
Coated・Carbide UP20M
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
3D Detail Model (STP,STL)
CAD data name Download
SPMN120308
