Insert for Rotating Tools >XDGX175004PDFR-GL

Insert for Rotating Tools

XDGX175004PDFR-GL EDP:565431

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number XDGX175004PDFR-GL
Sales unit 10
Stock
Unit of Length I

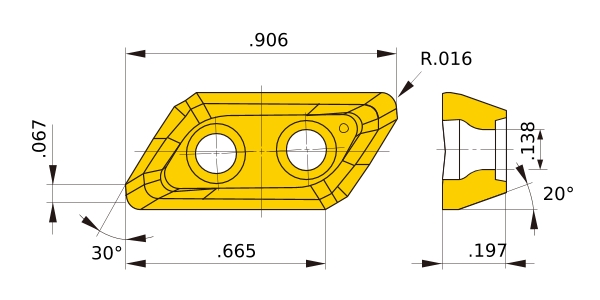

D1 .138
AN 20°
INSL .689
LE .665
L .906
BS .067
S .197
RE .016
Breaker GL
Classification of Grades
Coated・Carbide LC15TF
3D Detail Model (STP,STL)
CAD data name Download
