Insert for Rotating Tools

STAWN1070TH EDP:541481

Product Information

The actual product may differ from the displayed image.

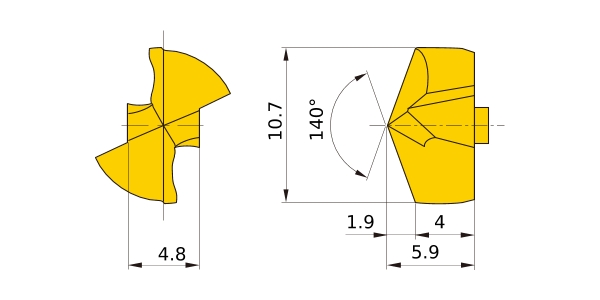

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number STAWN1070TH
Sales unit 1
Stock

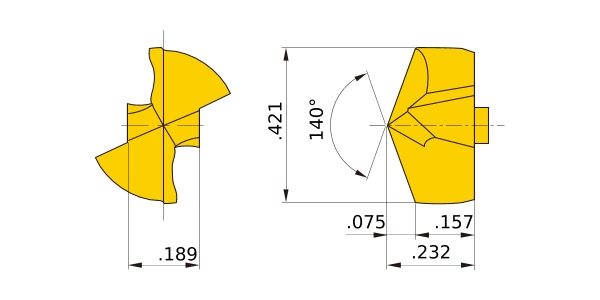

Unit of Length I
SIG 140°
LF .157
INSL .232
S .189
CDI .421
PL .075
3D Detail Model (STP,STL)
CAD data name Download
STAWN1070TH
CAD
