Insert for Rotating Tools

SRM220C-M EDP:252890

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SRM220C-M
Sales unit 10
Stock

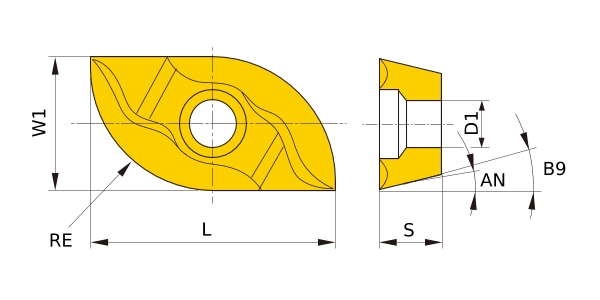

Unit of Length I
D1 5.7
B9 18°
AN 11°
L 1.102
W1 .638
S .276
RE .625
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
3D Detail Model (STP,STL)
CAD data name Download
SRM220C-M
