Insert for Rotating Tools

SOMX094506-UM EDP:654741

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SOMX094506-UM
Sales unit 10
Stock
Unit of Length I

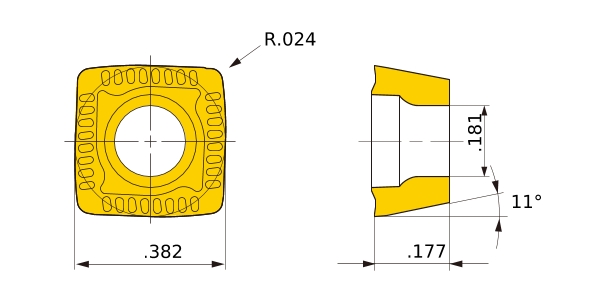

D1 .181
IC .382
AN 11°
S .177
RE .024
Classification of Grades
Coated・Carbide MC1020
Coated・Carbide MC5020
3D Detail Model (STP,STL)
CAD data name Download
SOMX094506-UM
