Insert for Rotating Tools

SRFT0375 EDP:662127

Product Information

The actual product may differ from the displayed image.

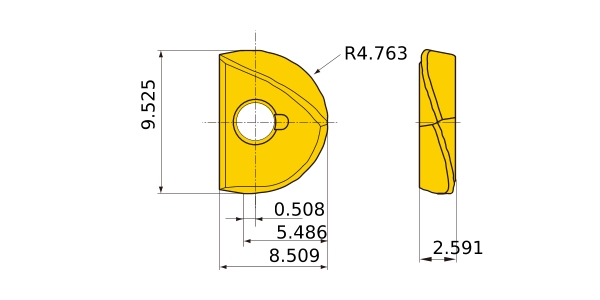

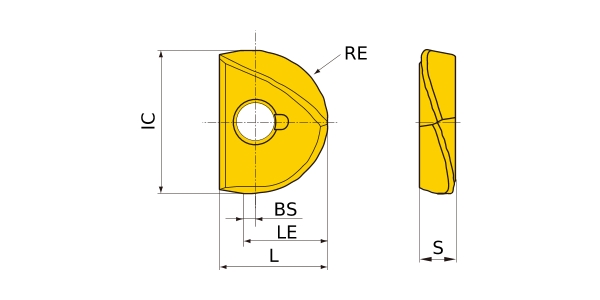

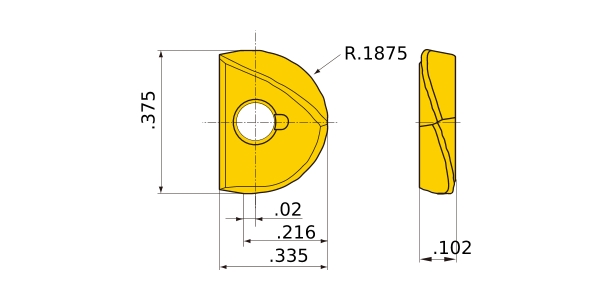

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP6120
Order Number SRFT0375
Sales unit 2
Stock
Unit of Length I
D1 3
IC .375
LE .216
L .335
BS .02
S .102
RE .1875
Tolerance IC:0 - -.0011 RE:±.00024 L:±.0006
Classification of Grades
Coated・Carbide MP8010
Coated・Carbide VP15TF
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
