Insert for Rotating Tools

SRFT1000 EDP:662160

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP6120
ANSI SRFT1000
Sales unit 2
Stock
Unit of Length M

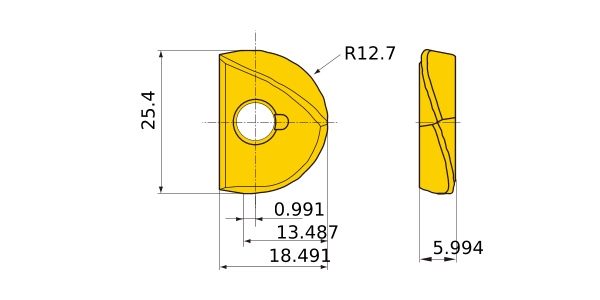

D1 152.4
IC 25.4
LE 13.487
L 18.491
BS 0.991
S 5.994
RE 12.7
Tolerance IC:0 - -0.027 RE:±0.006 L:±0.015
Classification of Grades
Coated・Carbide MP8010
Coated・Carbide VP15TF
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
