Insert for Rotating Tools >JDMT140520ZDSR-JM

Insert for Rotating Tools

JDMT140520ZDSR-JM EDP:801296

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP7140
Order Number JDMT140520ZDSR-JM
Sales unit 10
Stock

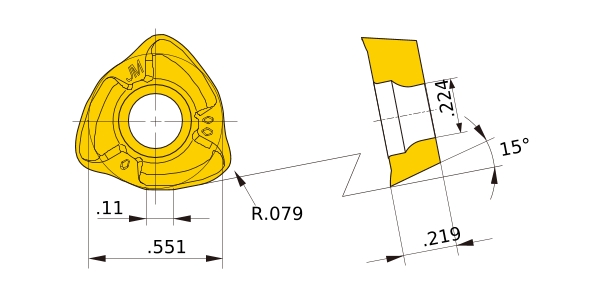

Unit of Length I
D1 .224
IC .551
AN 15°
BS .11
S .219
RE .079
Classification of Grades
Coated・Carbide MP7130
Coated・Carbide MP6120
Coated・Carbide MP6130
Coated・Carbide MP9120
Coated・Carbide MP9130
Coated・Carbide FH7020
Coated・Carbide VP15TF
Coated・Carbide VP30RT
3D Detail Model (STP,STL)
CAD data name Download
JDMT140520ZDSR-JM
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Face Cutter

  • End Mills
