Insert for Rotating Tools

AOMT184810PEER-M EDP:801721

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9130
Order Number AOMT184810PEER-M
Sales unit 10
Stock

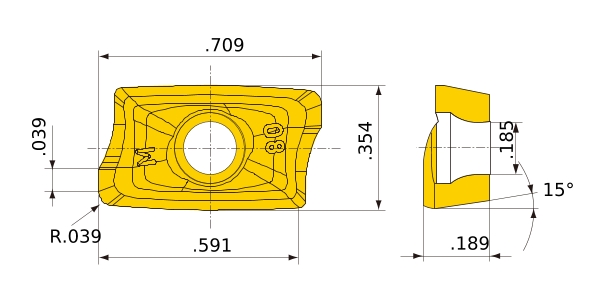

Unit of Length I
D1 .185
AN 15°
LE .591
L .709
W1 .354
BS .039
S .189
RE .039
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
Coated・Carbide VP15TF
