Insert for Rotating Tools

STAWN0038TH EDP:10531150

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number STAWN0038TH
Sales unit 1
Stock

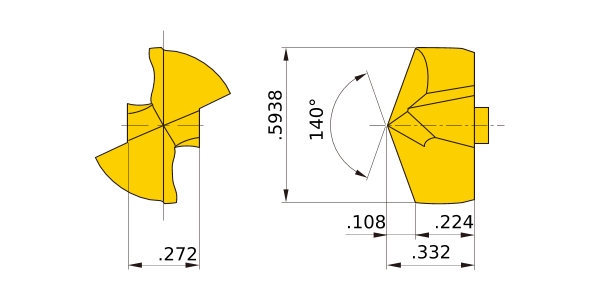

Unit of Length I
SIG 140°
LF .224
INSL .332
S .272
CDI .5938
PL .108
3D Detail Model (STP,STL)
CAD data name Download
STAWN0038TH
CAD
