Insert for Rotating Tools

STAWN0041T EDP:10531181

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI STAWN0041T
Sales unit 1
Stock
Unit of Length M

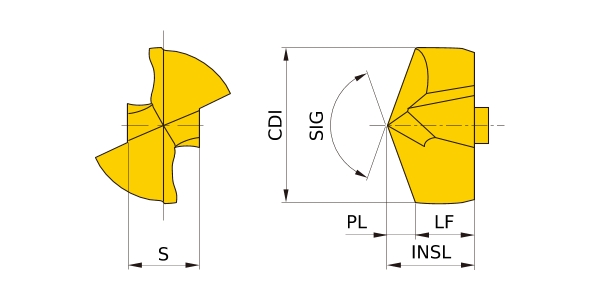

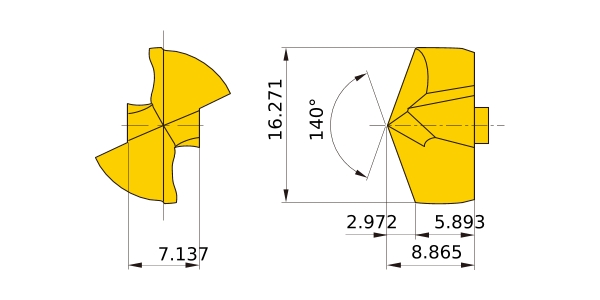

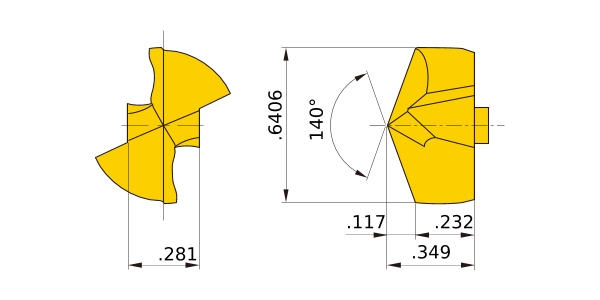

SIG 140°
LF 5.893
INSL 8.865
S 7.137
CDI 16.271
PL 2.972
2D Model (DXF)
CAD data name Download
STAWN0041T
CAD
