Insert for Rotating Tools >XDGX175008PDER-GM

Insert for Rotating Tools

XDGX175008PDER-GM EDP:10537589

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MP6120
Order Number XDGX175008PDER-GM
Sales unit 10

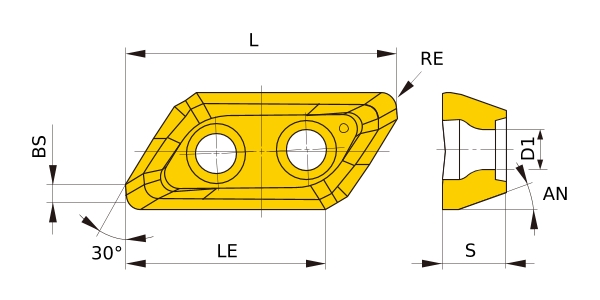

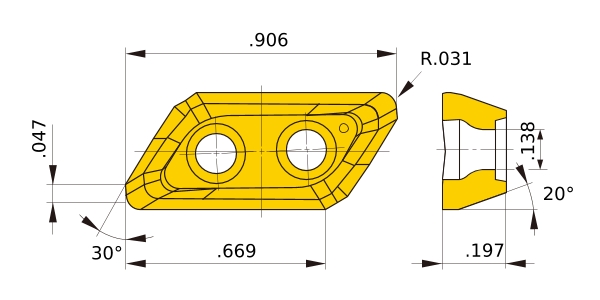

Unit of Length I
D1 .138
AN 20°
INSL .689
LE .669
L .906
BS .047
S .197
RE .031
Breaker GM
Classification of Grades
Coated・Carbide MP9120
3D Detail Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
