Insert for Rotating Tools >XDGX175040PDER-GM

Insert for Rotating Tools

XDGX175040PDER-GM EDP:10537657

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MP6120
Order Number XDGX175040PDER-GM
Sales unit 10
Stock

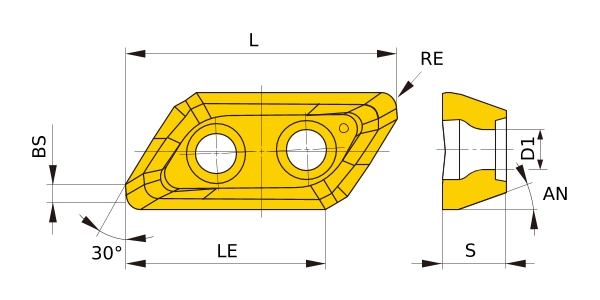

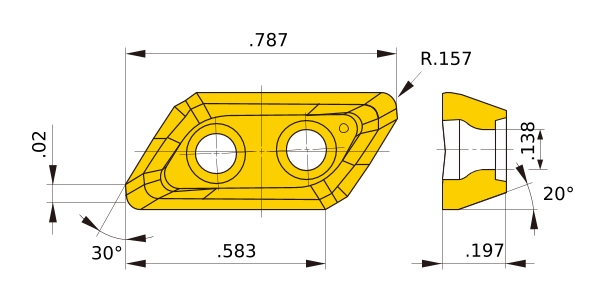

Unit of Length I
D1 .138
AN 20°
INSL .689
LE .583
L .787
BS .02
S .197
RE .157
Breaker GM
Classification of Grades
Coated・Carbide MP9120
3D Detail Model (STP,STL)
CAD data name Download
XDGX175040PDER-GM
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
