Insert for Rotating Tools >XDGX227040PDER-GLA

Insert for Rotating Tools

XDGX227040PDER-GLA EDP:10537817

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9120
Order Number XDGX227040PDER-GLA
Sales unit 10
Stock

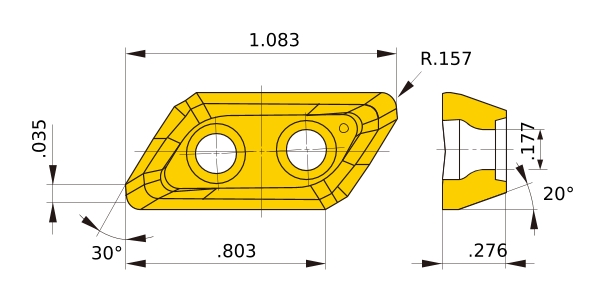

Unit of Length I
D1 .177
AN 20°
LE .803
L 1.083
BS .035
S .276
RE .157
Breaker GLA
Classification of Grades
Coated・Carbide MP6120
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Face Cutter

  • End Mills
