Insert for Rotating Tools

SOMX073405-UH EDP:10568279

Product Information

The actual product may differ from the displayed image.

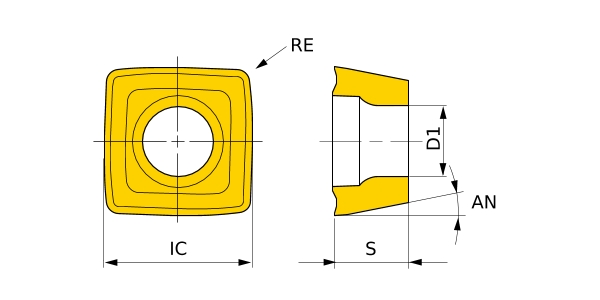

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP8020
Order Number SOMX073405-UH
Sales unit 10
Stock
Unit of Length I
D1 .137
IC .276
AN 11°
S .134
RE .02
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
