Insert for Rotating Tools

XNMU160712R-MS EDP:10573310

Product Information

The actual product may differ from the displayed image.

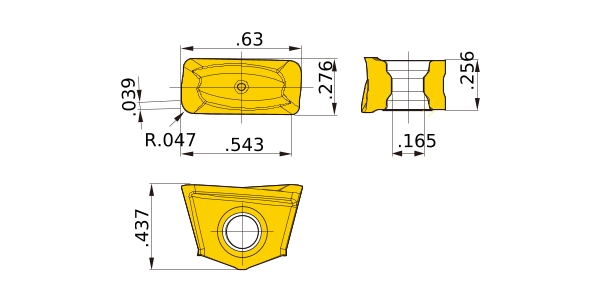

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9130
ANSI XNMU160712R-MS
Sales unit 10
Stock
Unit of Length M

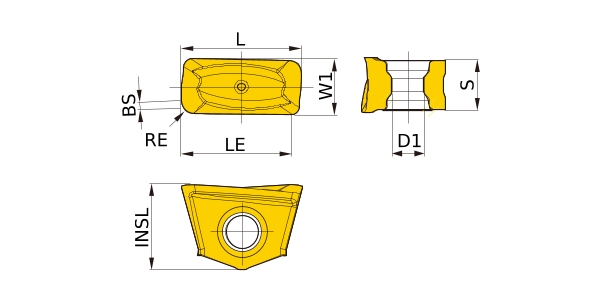

D1 4.2
INSL 11.1
LE 13.8
L 16
W1 7
BS 1
S 6.5
RE 1.2
3D Detail Model (STP,STL)
CAD data name Download
XNMU160712R-MS
CAD
