Insert for Rotating Tools

LNGU171040PNER-R EDP:10572566

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number LNGU171040PNER-R
Sales unit 10
Hand R
Stock

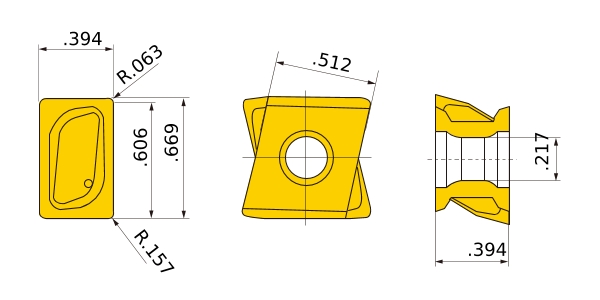

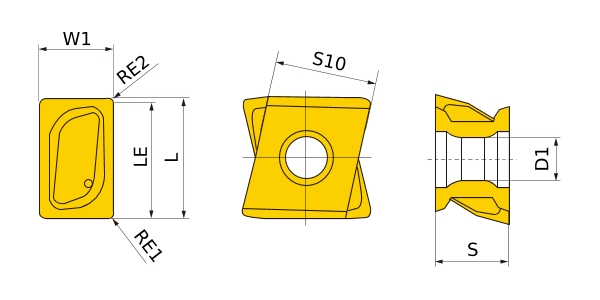

Unit of Length I
D1 .217
LE .606
L .669
W1 .394
S10 .512
S .394
RE1 .157
RE2 .063
Classification of Grades
Coated・Carbide MP6120
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
