Insert for Rotating Tools

GOER1401ZXFR2 EDP:10583784

Product Information

The actual product may differ from the displayed image.

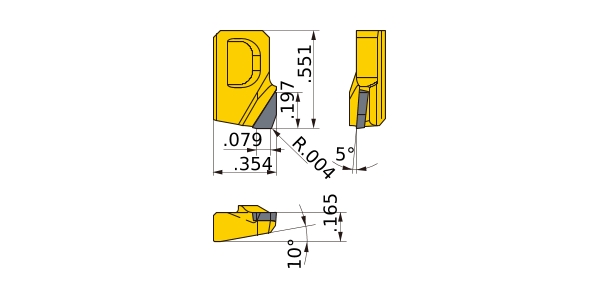

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI GOER1401ZXFR2
Sales unit 1
Stock
Unit of Length M
LE 5
L 14
W1 9
BS 2
S 4.2
RE 0.1
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Face Cutter
