Insert for Rotating Tools

LNGU130820PNEL-R EDP:10588994

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number LNGU130820PNEL-R
Sales unit 10
Hand L
Stock

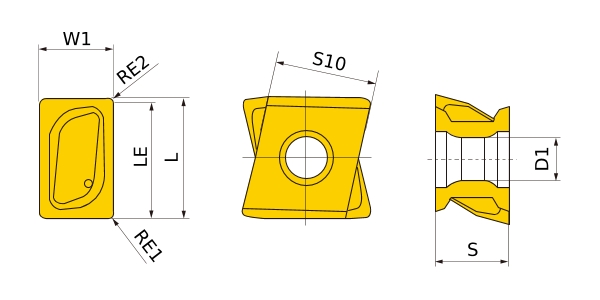

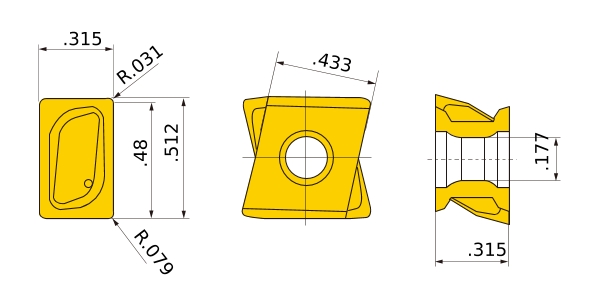

Unit of Length I
D1 .177
LE .48
L .512
W1 .315
S10 .433
S .315
RE1 .079
RE2 .031
Classification of Grades
Coated・Carbide MP6120
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Face Cutter
