Insert for Rotating Tools

LNGU090604PNER-M EDP:10603857

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number LNGU090604PNER-M
Sales unit 10
Hand R
Stock

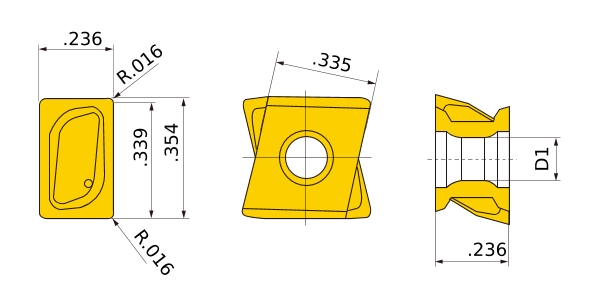

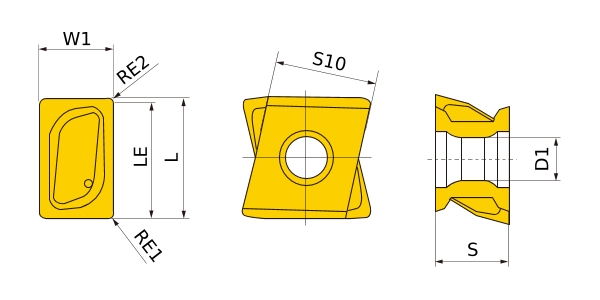

Unit of Length I
LE .339
L .354
W1 .236
S10 .335
S .236
RE1 .016
RE2 .016
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
