Solid End Mills

VQMHVRBF_INCH
（Corner radius end mill, Medium cut length, 4 flute, Irregular helix flutes）

VQMHVRBFD3/8R030 EDP:657432

Product Information

  • SMART MIRACLE corner radius, irregular helix end mills for reduced vibration.
  • Delivering a stable performance on finish cutting for difficult-to-cut materials such as inconel.

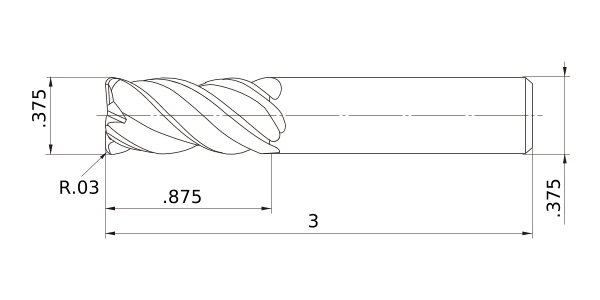

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .375
DCON .375
LF 3
APMX .875
RE .03
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0006
R Tolerance + .0006
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VQ
