Spare Parts >RBH19020N

Spare Parts

RBH19020N EDP:297588

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

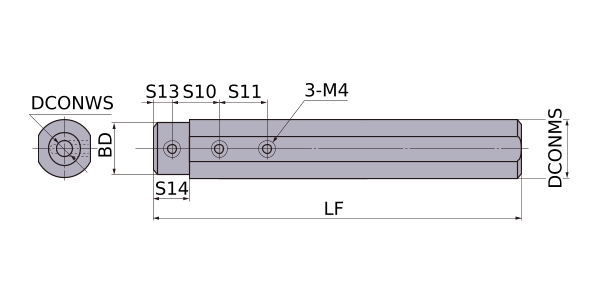

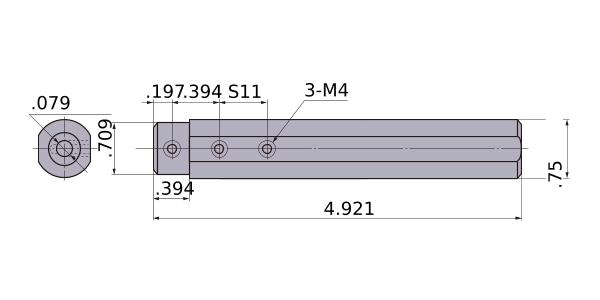

DCONWS 2
DCONMS 19.05
BD 18
LF 125
S10 10
S13 5
S14 10
2D Model (DXF)
CAD data name Download
RBH19020N
