Spare Parts >RBH19050N

Spare Parts

RBH19050N EDP:297617

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

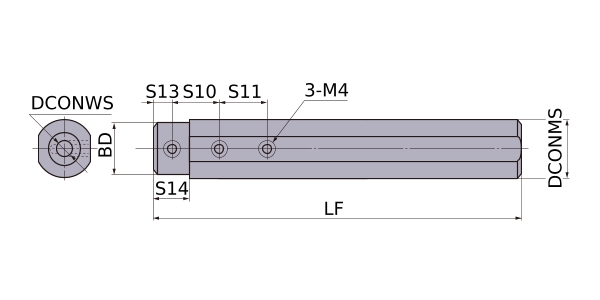

Unit of Length I
DCONWS .197
DCONMS .75
BD .709
LF 4.921
S10 .591
S11 .591
S13 .197
S14 .394
