Spare Parts >RBH16400A

Spare Parts

RBH16400A EDP:347768

Product Information

The actual product may differ from the displayed image.

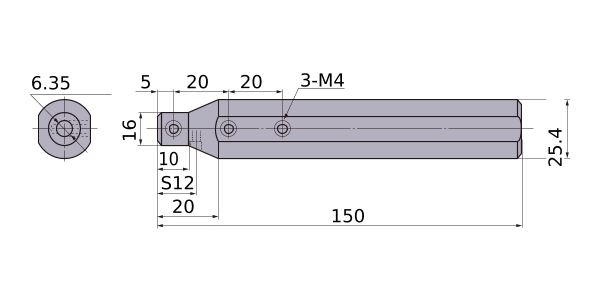

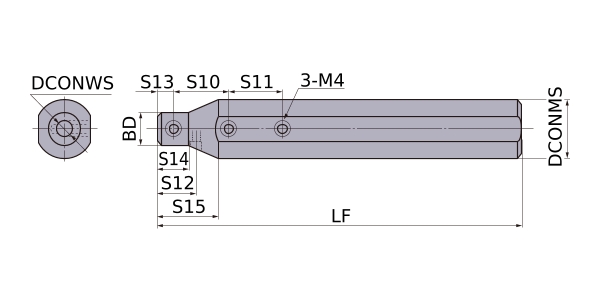

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M
DCONWS 6.35
DCONMS 25.4
BD 16
LF 150
S10 20
S11 20
S13 5
S14 10
S15 20
