Spare Parts >RBH16189A

Spare Parts

RBH16189A EDP:347696

Product Information

The actual product may differ from the displayed image.

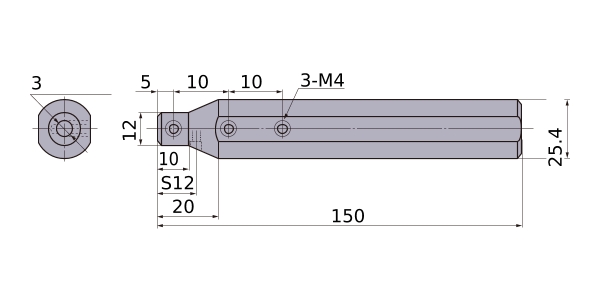

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

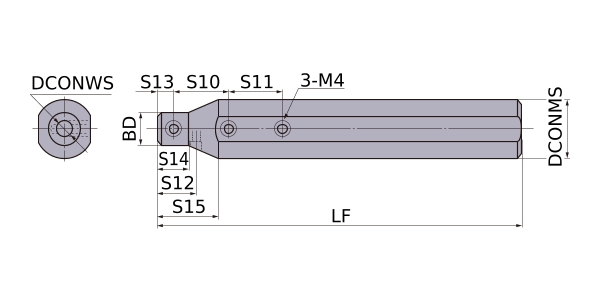

Unit of Length I
DCONWS .118
DCONMS 1
BD .472
LF 5.906
S10 .394
S11 .394
S13 .197
S14 .394
S15 .787
