Spare Parts >RBH16315A

Spare Parts

RBH16315A EDP:347717

Product Information

The actual product may differ from the displayed image.

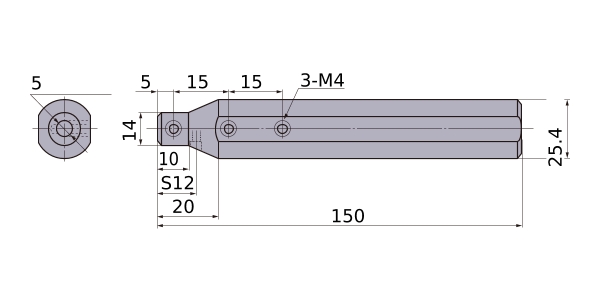

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

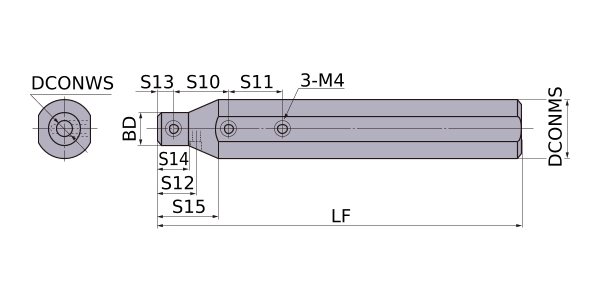

DCONWS 5
DCONMS 25.4
BD 14
LF 150
S10 15
S11 15
S13 5
S14 10
S15 20
2D Model (DXF)
CAD data name Download
RBH16315A
