Spare Parts >RBH12350A

Spare Parts

RBH12350A EDP:347653

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

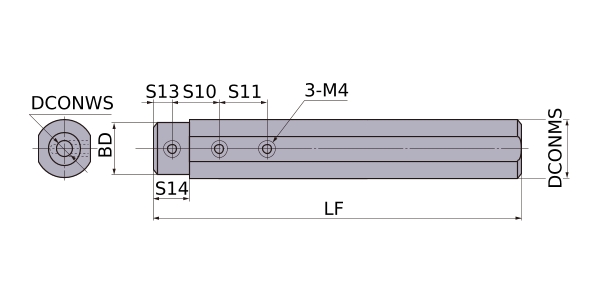

Unit of Length I
DCONWS .219
DCONMS .75
BD .709
LF 4.921
S10 .591
S11 .591
S13 .197
S14 .394
2D Model (DXF)
CAD data name Download
RBH12350A
CAD
